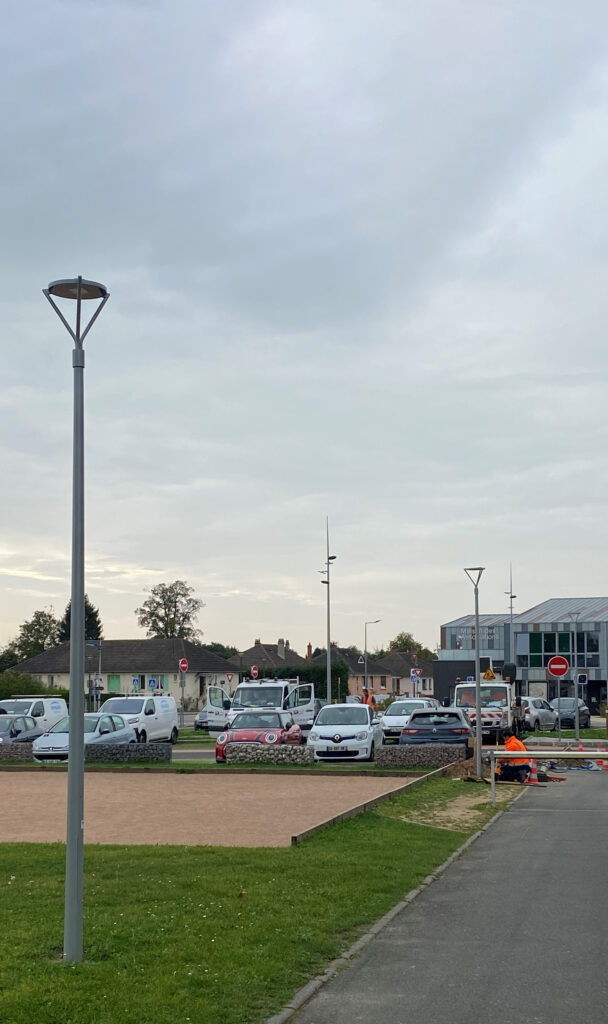

Miroir D

Compatible with BioDiv system
Detached equipment

• Round mirror luminaire, class II
• One-piece body in die-cast aluminum casting Ø370mm
• Sealed screen-printed bowls
– in IK08 flat glass, as standard
– in IK10 polycarbonate, on request
• Aluminum strips between PCBs to reduce glare
• RAL / Akzo Nobel powder coating of your choice, seaside option on request
• Adjustable lyre attachments from all angles
• Cylindrical conical mast in top 60 enhanced with a needle point.
• RAL / Akzo Nobel powder coating of your choice, seaside option on request

– Lifespan L90B10 100,000h
– Luminous efficiency up to 135 lm/W
– LED source flux from 1000 to 18000lm
– PMMA optical lenses
– Aluminum PCB up to 4 PCBs
– Optics: Road (R), Semi-urban (SU), Urban (U), Square (P), Cycle path (PCY), Pedestrian crossing, Architectural.
– Color temperatures: 3000K, 2700K, 2200K, 1800K (4000K, on request) – Coexistence of 2 optional color temperatures*.
– Pre-wired HO7 RN-F flexible 6m
– ULR < 1%, ULR < 4% (in situ), CIE flux 3 code > 95%

• EQUIPMENT remote at the base of the mast:
– IP66 waterproofing
– Optional antenna socket (Zhaga, Nema)
– Driver Lite prog, Driver Full prog (With DALI output on request). SR or D4I driver and socket, optional * Additional driver for temperature mix option

10kV surge protector on request,Varistor on request.

All our components are ENEC certified

  • Lyre can be rotated from any angle

  • Eligible for energy-saving certificate
  • ENEC-certified components
  • RoHS
  • DEEE PRO member
  • CE 1166
  • ISO 9001
  • ISO 14001
  • Meets the requirements of the Decree of December 27, 2018 on the prevention, reduction and limitation of light pollution.
